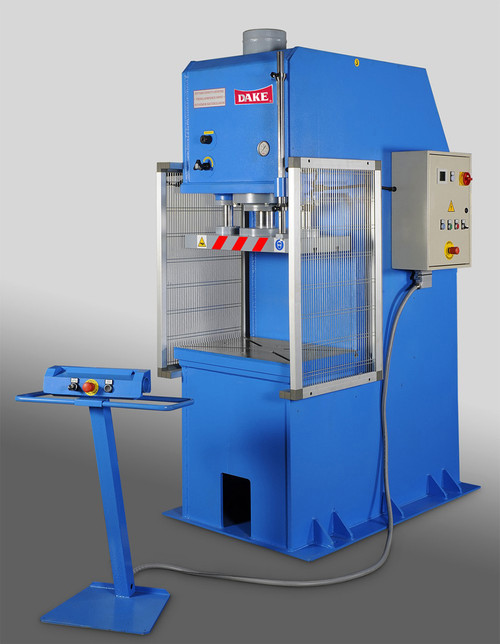

Dake PCL C-Frame Straightening Presses with Platen
Automatic or Semi-Automatic C-Frame Press w/ 2-Post Guided Upper Platen
Dake offers a line of floor-mounted, C-Frame presses between 40 and 200 tons with an upper guided platen. Presses are available with either semi-automatic or automatic operation. A broad range of optional controls are available to adapt these presses for specific application requirements.
Features:
- Welded frame construction with reinforcements inside
- Adjustable limit switches for up and down stroke
- Useful for stamping, molding, assembly, testing, and clamping applications
- Quiet, low pressure hydraulic components for long life, greater efficiency, and smooth pressing operation
- 2-speed power unit automatically shifts from rapid advance to pressing speed
Optional Features:
- 4-Post Upper Guides
- Timer
- Counter
- Light Curtains
- Siemens Touch Screen Control & Display
- Siemens Digital Control & Display
- Gates- Fixed Side
- Air/Oil Heat Exchanger
- Decompression
- Pressure Transducer Incorporated into Electronic Control Panel
- Pressure Switch
Specifications:
| Model | PCL 40A | PCL 40S | PCL 70A | PCL 70S |
| capacity (tons) | 40 | 40 | 70 | 70 |
| horsepower | 5.5 | 5.5 | 5.5 | 5.5 |
| ram speed advance (ipm) | 61 | 61 | 57 | 57 |
| ram speed pressing (ipm) | 21 | 21 | 12 | 12 |
| ram travel | 19 | 19 | 19 | 19 |
| daylight | 19 | 19 | 19 | 19 |
| throat | 9 | 9 | 9 | 9 |
| Height (inches) | 98 | 98 | 98 | 98 |
| base (inches) | 40 x 59 | 40 x 59 | 40 x 59 | 40 x 59 |
| upper platen (inches) | 27 x 12 | 27 x 13 | 27 x 13 | 27 x 13 |
| lower platen (inches) | 27 x 19 | 27 x 19 | 27 x 19 | 27 x 19 |
| weight (lbs) | 3,307 | 3,307 | 4,630 | 4,630 |
| Model | PCL 100A | PCL 100S | PCL 150A | PCL 150S |
| capacity (tons) | 100 | 100 | 150 | 150 |
| horsepower | 5.5 | 5.5 | 5.5 | 5.5 |
| ram speed advance (ipm) | 59 | 59 | 47 | 47 |
| ram speed pressing (ipm) | 9 | 9 | 7 | 7 |
| ram travel | 19 | 19 | 19 | 19 |
| daylight | 19 | 19 | 19 | 19 |
| throat | 11 | 11 | 11 | 11 |
| Height (inches) | 102 | 102 | 118 | 118 |
| base (inches) | 47 x 75 | 47 x 75 | 59 x 87 | 59 x 87 |
| upper platen (inches) | 27 x 13 | 27 x 13 | 31 x 15 | 31 x 15 |
| lower platen (inches) | 31 x 23 | 31 x 23 | 31 x 23 | 31 x 23 |
| weight (lbs) | 7,496 | 7,496 | 12,125 | 12,125 |
| Model | PCL 200A |
| capacity (tons) | 200 |
| horsepower | 10 |
| ram speed advance (ipm) | 50 |
| ram speed pressing (ipm) | 7 |
| ram travel | 19 |
| daylight | 19 |
| throat | 11 |
| Height (inches) | 118 |
| base (inches) | 59 x 91 |
| upper platen (inches) | 31 x 19 |
| lower platen (inches) | 39 x 23 |
| weight (lbs) | 18,078 |
