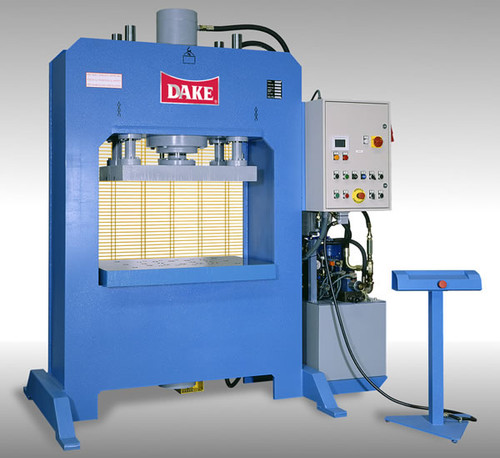

Dake Hydraulic PST Platen Presses
Dake offers a line of H-Frame, guided-platen presses from 40 to 400 tons. These H-Frames come configured with 2-post upper guided platen and a stationary lower platen for mounting tooling. Both semi-automatic and automatic power units are available with a range of optional controls. Optional die cushions are available for forming applications.
Features:
- Welded frame construction with reinforcements inside
- Upper platen with 2 guide posts and t-slots for mounting tooling
- Adjustable limit switches for up and down stroke
- Quiet, low pressure hydraulic components for long life, greater efficiency, and smooth pressing operation
- Lower table bolted to frame with t-slots for mounting tooling
- Pedestal mounted anti-tie down, anti-repeat palm buttons
- 2-speed power unit automatically shifts from rapid advance to pressing speed
Specifications:
| model | PST-40S | PST-40A | PST-70S | PST-70A |
| capacity (tons) | 40 | 40 | 70 | 70 |
| horsepower | 2 | 5.5 | 2 | 5.5 |
| ram speed advance (ipm) | 69 | 61 | 47 | 59 |
| ram speed pressing (ipm) | 9 | 21 | 7 | 13 |
| ram travel | 19 | 19 | 19 | 19 |
| daylight | 19 | 19 | 19 | 19 |
| width between uprights (inches) | 35 | 35 | 35 | 35 |
| height (inches) | 87 | 87 | 88 | 88 |
| base (inches) | 63 x 28 | 63 x 28 | 73 x 41 | 73 x 41 |
| upper platen (inches) | 27 x 13 | 27 x 13 | 27 x 13 | 27 x 13 |
| lower platen (inches) | 27 x 19 | 27 x 19 | 27 x 19 | 27 x 19 |
| weight (lbs) | 2,315 | 2,315 | 3,197 | 3,197 |
| model | PST-100S | PST-100A | PST-150S | PST-150A |
| capacity (tons) | 100 | 100 | 150 | 150 |
| horsepower | 3 | 5.5 | 5.5 | 5.5 |
| ram speed advance (ipm) | 61 | 61 | 52 | 52 |
| ram speed pressing (ipm) | 9 | 9 | 7 | 7 |
| ram travel | 19 | 19 | 19 | 19 |
| daylight | 19 | 19 | 19 | 19 |
| width between uprights (inches) | 41 | 41 | 49 | 49 |
| height (inches) | 89 | 89 | 98 | 98 |
| base (inches) | 82 x 42 | 82 x 42 | 93 x 60 | 93 x 60 |
| upper platen (inches) | 27 x 13 | 27 x 13 | 39 x 15 | 39 x 15 |
| lower platen (inches) | 31 x 23 | 31 x 23 | 47 x 27 | 47 x 27 |
| weight (lbs) | 5,071 | 5,071 | 10,803 | 10,803 |
| model | PST-200S | PST-200A | PST-300A | PST-400A |
| capacity (tons) | 200 | 200 | 300 | 400 |
| horsepower | 10 | 10 | 10 | 10 |
| ram speed advance (ipm) | 52 | 52 | 52 | 52 |
| ram speed pressing (ipm) | 5 | 7 | 5 | 5 |
| ram travel | 19 | 19 | 19 | 19 |
| daylight | 19 | 19 | 19 | 19 |
| width between uprights (inches) | 49 | 49 | 59 | 59 |
| height (inches) | 98 | 98 | 104 | 110 |
| base (inches) | 93 x 63 | 93 x 63 | 99 x 65 | 99 x 67 |
| upper platen (inches) | 39 x 19 | 39 x 19 | 39 x 31 | 47 x 35 |
| lower platen (inches) | 47 x 27 | 47 x 27 | 55 x 39 | 55 x 39 |
| weight (lbs) | 12,787 | 12,787 | 15,873 | 18,739 |
