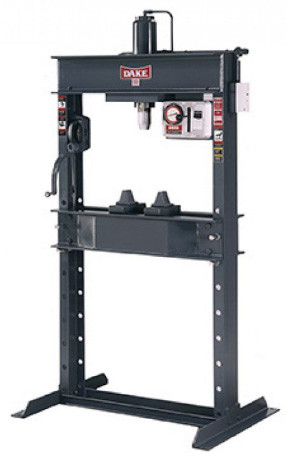

Dake Hydraulic Presses, Elec-Draulic II Dual Acting
Features:
- Electric operation provides smooth, consistent pressing action.
- Variable ram speed allows fingertip control of ram movement for precise control.
- H-frame mounted control allows convenient control of press when workhead is out of operator’s reach.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double-acting cylinder permits pulling as well as pressing ram action
- Safety valve protects against overloads.
- T-ring seals prevent pressure loss.
Standard Equipment:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Pump
- Safety Relief Valve
- Self-locking Table Hoist
- Double Acting Workhead
- 2 Steel Table Plates
- Pressure Gauge
Model Options:
- Traversing head
- Bolt Flange Adaptor
Specifications:
| Model | 8-025 | 8-050 | 8-075 |
| Manufacturer Number | 908025 | 908050 | 908075 |
| Capacity | 25 tons pressing 10 tons pulling | 50 tons pressing 18 tons pulling | 75 tons pressing 28 tons pulling |
| Operation | Electric | Electric | Electric |
| Horsepower | 2 | 2 | 2 |
| Voltage | 220V/440V, 3-Phase | 220V/440V, 3-Phase | 220V/440V, 3-Phase |
| Width between uprights | 32-3/4" | 32-3/4" | 44" |
| Width between table channels | 7-1/4" | 7-1/4" | 8-1/4" |
| Minimum ram to table | 11-3/4" | 10-1/8" | 7-5/8" |
| Maximum ram to table | 46-3/4" | 45-1/8" | 37-5/8" |
| Ram travel | 10" | 10" | 10" |
| Screw Travel | n/a | n/a | n/a |
| Horizontal workhead travel | n/a | n/a | n/a |
| Footprint | 43-1/2" x 36" | 43-1/2" x 36" | 55-1/2" x 36" |
| Height | 83" | 86" | 86" |
| Weight | 1,060 lbs | 1,360 lbs | 1,950 lbs |
| Base | 43-1/2" x 36" | 43-1/2" x 36" | 55-1/2" x 36" |
| Ram advance speed | n/a | n/a | n/a |
| Pressing speed | 15 ipm | 8 ipm | 5 ipm |
| RPM | 1,800 | 1,800 | 1,800 |
| Air Pressure | n/a | n/a | n/a |
| Model | 8-080 | 8-150 | 8-200 |
| Manufacturer Number | 908080 | 908150 | 908200 |
| Capacity | 75 tons pressing 28 tons pulling | 150 tons pressing 65 tons pulling | 200 tons pressing 78 tons pulling |
| Operation | Electric | Electric | Electric |
| Horsepower | 10 | 10 | 7-1/2 |
| Voltage | 220V/440V, 3-Phase | 220V/440V, 3-Phase | 230/460, 3 phase |
| Width between uprights | 44" | 48" | 48" |
| Width between table channels | 8-1/4" | 12-1/4" | 18-3/8" |
| Minimum ram to table | 7-5/8" | 11-3/4" | 6" |
| Maximum ram to table | 37-5/8" | 31-3/4" | 30" |
| Ram travel | 10" | 16" | 16" |
| Screw Travel | n/a | n/a | n/a |
| Horizontal workhead travel | n/a | n/a | n/a |
| Footprint | 55-1/2" x 36" | 66" x 42" | 64" x 48" |
| Height | 86" | 95" | 106" |
| Weight | 2,100 lbs | 3,620 lbs | 6,100 lbs |
| Base | 55-1/2" x 36" | 66" x 42" | 64" x 48" |
| Ram advance speed | n/a | n/a | n/a |
| Pressing speed | 30 ipm | 17 ipm | 8 ipm |
| RPM | 1,800 | 1,800 | 1,800 |
| Air Pressure | n/a | n/a | n/a |
