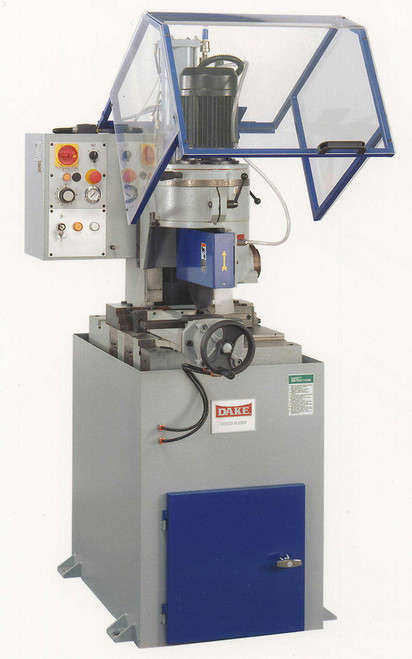

Dake Euromatic 370S Semi-Automatic Post Cold Saws
A workhorse saw that's user friendly for set up and operation. These Semi-Automatic Euromatic Cold Saws feature two removable surface wear plates. They also have heads that rotate 45º, three gib guides, a manual oiler, a 3.5 HP motor or 4.5 HP motor, and a self-adjusting, metal chip brush.
Features:
- Head rotates 45º right of center for miter cutting and up to 90º left of center for miter cutting and slotting
- Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
- Manual oiler to lubricate 1" thick, hardened vertical ways
- 3.5/4.5 HP motor has the muscle to drive a 14-1/2" or 12" blade quickly and quietly through solids
- Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
- Table features two removable surface wear plates to support longer cut lengths
- Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
- Rear surface of the gear box is machined with interlocking circles to evenly distribute oil over the ways
- Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
- Self-adjusting, metal chip brush fills removable chip drawer
Standard Equipment:
- Blade
- Coolant
- Instruction and service manual
- Tool kit for changing blades
- Adjustable positive stop
- Saw blade selector calculator
Specifications:
| Model | Euromatic 370S | Euromatic 370S | Euromatic 370S-L | Euromatic 370S-L |
| Order number | 76200-2 | 76200-4 | 76202-2 | 76202-4 |
| voltage | 220-volt 3-phase | 440-volt 3-phase | 220-volt 3-phase | 440-volt 3-phase |
| head | Ferrous | Ferrous | Non-Ferrous | Non-Ferrous |
| maximum blade size | 14-1/2" | 14-1/2" | 14-1/2" | 14-1/2" |
| maximum vise opening | 8-3/4" | 8-3/4" | 8-3/4" | 8-3/4" |
| motor horsepower | 3.5/4.5 | 3.5/4.5 | 3.5/4.5 | 3.5/4.5 |
| blade speeds | 25/50 | 25/50 | 1,500/3,000 | 1,500/3,000 |
| weight | 1,360 lbs. | 1,360 lbs. | 1,360 lbs. | 1,360 lbs. |
| solid round 90˚ capacity | 4" | 4" | 4" | 4" |
| solid round 45˚ capacity | 3-5/8" | 3-5/8" | 3-5/8" | 3-5/8" |
| tube 90˚ capacity | 5-1/16" | 5-1/16" | 5-1/16" | 5-1/16" |
| tube 45˚ capacity | 5" | 5" | 5" | 5" |
| square 90˚ capacity | 4" | 4" | 4" | 4" |
| square 45˚ capacity | 3-7/8" | 3-7/8" | 3-7/8" | 3-7/8" |
| rectangle 90˚ capacity | 4" x 7" | 4" x 7" | 4" x 7" | 4" x 7" |
| rectangle 45˚ capacity | 4" x 6" | 4" x 6" | 4" x 6" | 4" x 6" |
