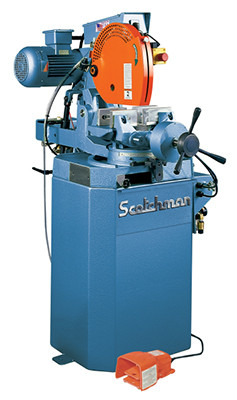

Scotchman Non Ferrous Manual Saw CPO350NF
Standard Features
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Device: Quick, Accurate Settings-Stops at 45 degrees Left, Straight 90 degrees, and 45 degrees Right
- Manual Double Self-Centering Vise Assures Burr-Free Cuts
- Operator Controlled Trigger Switch
- Capable of Slotting
- 5 HP, 3,000 RPM
- Positive Cog Belt Driven
- Chip Drawer
- One Gallon Coolant Tank with Mist Lubrication System
- One 13-1/2" Diameter (338 mm) Carbide-Tipped Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt /3 Phase Electrics (must specify voltage)
- Warranty: Three Years
- Made in USA
- For Optional Standard Tooling please Contact Us
| Non-Ferrous machines designed for aluminum, plastic, copper, etc. | ||
| Cutting Speed | 3,000 rpm | |
| Motor Rate | 5 HP | |
| TUBING Round Square Rectangle SOLID Round Square | 90 Degree 4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4" 90 Degree 3" 3" x 3" | 45 Degree 4-1/4" 4" x 4" 4" x 4" 45 Degree 2-1/2" 2-1/2" x 2-1/2" |
| Factory Wired | Specify 208 3 ph 230 3 ph 460 3 ph 575 3 ph 60 hz | |
| Maximum Diameter Blade | 14" | 350 mm |
| Arbor Bore | 1-9/16" | 40 mm |
| Pin Spacing | 4/12/64 | |
| Width | 21-7/8" | |
| Depth | 43-1/2" | |
| Height not including handle | 56-1/4" | |
| Height from floor to vise | 37-7/16" | |
| Shipping Weight | 675 lbs. |
Non Ferrous Manual Saw with 350 mm Blade
