Cleco LiveWire 47 Series Cordless Electric Right Angle Nutrunners
Cleco cordless transducer control nutrunners are designed for use in safety-critical operations where mobility is essential. Count on a Cleco cordless transducer control nutrunner for:
- Precision — Powered by the LiveWire™ wireless communications system, Cleco nutrunners deliver precise control over torque, angle and speed while maintaining wireless connectivity even in the most difficult operating conditions.
- Power — Notable features include configurable digital process controls, on-board power management and sensing power intelligence, configurable LED illumination and a built-in barcode scanner
- Portability — Capable of performing up to 1700 rundowns on a single battery charge, Cleco cordless transducer control nutrunners are built to go anywhere
- Productivity — An essential part of an integrated LiveWire™ system, a Cleco cordless nutrunner can improve productivity by up to 83% without compromising the safety of your team.
Up To 50% Savings Over Traditional Systems!
Mobility is a major advantage with wireless communications. Cleco LiveWire™ marries the freedom and flexibility of cordless tools with real-time wireless error proofing. Utilizing an industry standard 2.4GHz WLAN (Wireless Local Area network) interface in conjunction with the highest security encryption and authentification levels, plus a 512-cycle tool memory buffer, LiveWire™ ensures you will never compromise safety critical data transmissions.
Up To 83% More Productivity!
Cleco LiveWire™ tools are now available with Vmax™, a solution that drives tool power and speed increases up to 83% without losing accuracy or durability. This leading innovation utilizes the same 10 tools to one line controller hardware solution with up to 50% cost savings over traditional systems. New Vmax™ technology auto-senses the applied power source and adjusts the maximum tool speed capability on the fly. LiveWire™ with Vmax™ combines the power you need with the most versatile wireless system available today.
Click to see More Information on the LiveWire System

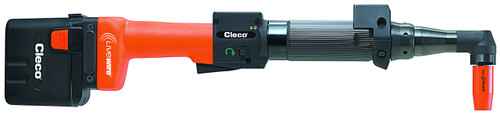

47 Series - Cordless Electric - Right Angle
- Brushless Operation
- Resolver Control
- Transducer Accuracy
- On-board controller with power management
- Integrated servo with I/O signal handling
Specifications:
Model | Torque Range Min (ft-lbs) | Torque Range Max (ft-lbs) | Free Speed (RPM) (26V) | Free Speed (RPM) (44V) | Weight (lbs) | Output Drive (in|mm) | Length (w/26V Battery) |
47BAYSB28AM3 | 7.4 | 20.7 | 291 | 532 | 4.8 | 3/8 Square Drive | 22.3 in |
47BAYSB15AM3 | 4.06 | 11.1 | 538 | 983 | 4.8 | 3/8 Square Drive | 21.8 in |
47BAYB15AM3 | 4.06 | 11.1 | 538 | 983 | 4.8 | 3/8 Square Drive | 21.8 in |
47BAYB21AM3 | 5.9 | 15.5 | 411 | 751 | 4.8 | 3/8 Square Drive | 21.8 in |
47BAYSB21AM3 | 5.9 | 15.5 | 411 | 751 | 4.8 | 3/8 Square Drive | 21.8 in |
47BAYSB35AM3 | 8.9 | 25.8 | 244 | 447 | 5.4 | 3/8 Square Drive | 23.1 in |
47BAYSB50AM3 | 13.3 | 36.9 | 168 | 293 | 5.4 | 3/8 Square Drive | 23.9 in |
47BAYSB70AH4 | 17.7 | 52 | 123 | 216 | 8.6 | 1/2 Square Drive | 26.7 in |
47BAYSB70P4 | 17.7 | 52 | 123 | 216 | 8.6 | 1/2 Square Drive | 26.7 in |
47BAYSB90AH4 | 29.5 | 66 | 82 | 144 | 8.7 | 1/2 Square Drive | 26.7 in |
