Clausing 2VS08 Milling Machine, 9" x 49", 3 HP - 87-114-199

Brand:

(No reviews yet) Write a Review
SKU:
87-114-199

Clausing

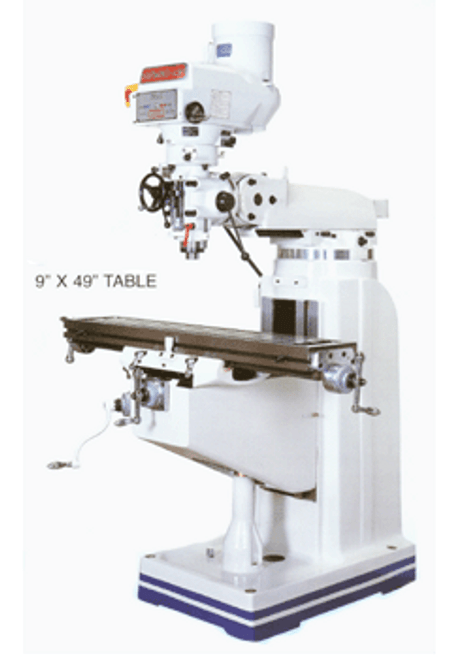

Clausing 2VS08 Milling Machine - 9" x 49" - 3 HP

  • Meehanite castings for superior rigidity and wear resistance.
  • Hardened & ground X, Y & Z ways.
  • Dovetail table, knee and column ways.
  • X/Y ways coated with Turcite B.
  • Column and knee way covers.
  • T-slots are ground to provide reference edge for positioning your workpiece.
  • Hardened and ground table surface and spindle.
  • Chromed and ground quill.
  • Chromed X, Y & Z leadscrews.
  • Double nut leadscrew for backlash compensation.
  • ABEC 7/CP4 spindle bearings.
  • Flexible segmented coolant nozzle.
  • Chromed Y screw covers and one-piece wipers.
  • Variable speed drive.
  • Articulating head for compound angles.
  • Worm gear angular positioning of head in two directions.
  • Lever-operated manual rapid quill movement.
  • Handwheel for fine quill feed.
  • Adjustable automatic feed disengagement for quill feed.
  • Reversing switch for clockwise or counter clockwise operation.
  • Spindle brake (hand operated).
  • One-shot lubrication.


Includes

  • Coolant system with pump and switch.
  • Micrometer depth stop.
  • 7/16" drawbar.
  • 3 HP AC motor.
  • Halogen worklight.
  • Tool kit, test and accuracy chart.
  • Operations manual/parts list.


Specifications:

Brand CLAUSING
Model # 2VS
Table 9" x 49"
Spindle Taper R8
Spindle Motor 3 HP, 3 PH, 230/460V
Cross Travel 11.8"
Dimensions 75" x 69" x 86"
Head Tilt 90° Left & Right
Horsepower 3 HP
Knee Travel 15.7"
Longitudinal Travel 33.86"
Net Weight 2200 lbs.
Phase 3 PH
Price Table Description 9" x 49" Vertical Milling Machine
Quill Feed .0015/.0031/.006
Ram Travel 18.53"
Spindle Speed 60 ~ 4,300 RPM
Spindle Speed Range 60 ~ 4300 RPM
Spindle Taper Quill Feed R8
Spindle To Column 5.51"~26"
Swiveling Angle & Head 90° Left & Right
Travel of Knee 15.7"
Table To Spindle Nose 3.54"~19.29"
Travel of Z Axis 15.7"
Voltage 230/460V
Warranty 1 year
Weight 2200 lbs
Vertical Milling Machine 9x49 3 HP, 3 PH, 230/460V
