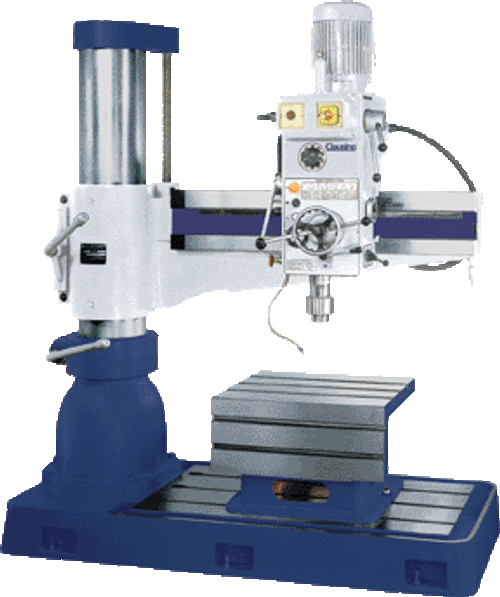

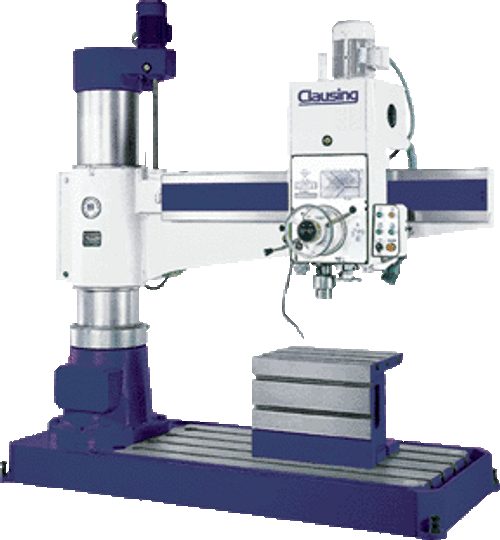

Clausing Heavy-Duty, Large Capacity Radial Drill CL1100
Features and Standard Equipments:
-
High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning.
-
The bearing bracket of gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation.
-
High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability.
-
Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor.
-
Overload protection device
-
The main spindle is balanced by a compressed spring.
-
Coolant System
-
Low volt and overload protection
-
Tool kit and manuals
Specifications:
| Model | CL1100 | ||
| Working Area | |||
|
| Column Sleeve Dia (E) | 10.24" (260mm) | |
|
| Column Face to Spindle Center | ||
|
|
| Maximum (D+C) | 43.3" (1100mm) |
|
|
| Minimum (D) | 11.0" (280mm) |
|
| Spindle Head Travel (C) | 32.3" (820mm) | |
|
| Base Surface to Spindle End | ||
|
|
| Maximum (A) | 50.0" (1270mm) |
|
|
| Minimum (B) | 18.5" (470mm) |
|
| Arm Vertical Travel (A-B) | 22.4" (570mm) | |
|
| Arm Rotation (Right & Left) | 180° | |
|
| Baseplate Working Surface | 47.3"x27.6" (1202mmx739mm) | |
|
| Box Table Area | ||
|
|
| Length (L) | 25.0" (635mm) |
|
|
| Width (K) | 20.5" (520mm) |
|
|
| Height (H) | 16.3" (415mm) |
|
| Base Dimensions | ||
|
|
| Floor Area (R x S) | 67.9"x28.1" (1725mmx702mm) |
|
|
| Height (Q) | 7.1" (180mm) |
| Drilling Head | |||
|
| Spindle Taper | MT#4 | |
|
| Spindle Stroke | 9.05" (230mm) | |
|
| Quill Diameter | 3.15" (80mm) | |
|
| Number of Spindle Speeds | 12 | |
|
| Spindle Speeds (rpm) | 44-1500 | |
|
| Number of Feeds | 3 | |
|
| Spindle Feed Rate (in(mm)/rev.) | 0.002"(.05mm), 0.0035"(.09mm), 0.006"(.15mm) | |
|
| Spindle Drive Motor (2-speed) | 3 hp (2.25 Kw) | |
|
| Elevating Motor | 1 hp (.75 Kw) | |
|
| Coolant Pump Motor | 1/8 hp (.10 Kw) | |
| Overall Measurements and Weight | |||
|
| Max. Machine Height (F) | 99.6" (2530mm) | |
|
| Base and Column Height (G) | 78.7" (2000mm) | |
|
| Shipping Dim. | ||
|
|
| Length | 74.0" (1880mm) |
|
|
| Width | 34.0" (864mm) |
|
|
| Height | 87" (2210mm) |
|
| Net Weight | 3,968 lbs (1800kg) | |
|
| Shipping Weight | 4,299 lbs (1950kg) |
