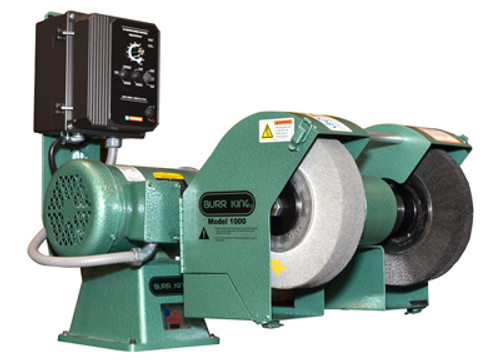

Burr King Model 1000 Deburring & Polishing Machines
The Model 1000 deburrs, grains, polishes, cleans, descales, and buffs at a single station, a single machine, and a single operator.
Features:
- Convenient up-front wheel design takes the difficult out of the difficult to do parts
- Convenient spindle position for speedy, comfortable operator transfer of parts wheel to wheel
- Versatility of convolute, flap, wire, fiber, nylon, or bristle brush wheels
- Versatility enhanced by narrow and wide wheel capability mix and match wheel sizes and types
- Rugged oversize hardened and ground spindle with counter threaded 3/4" diameter wheel arbors
- Versatility of variable speed control options
- Work reducing horse power options
- Smooth velvet touch operation delivered by the precision you expect from Burr King
- Smooth quiet micro v drive technology is operator friendly
- Durability of cast aluminum frame
Pedestal is optional, not included.
Click to see Pedestal Stands
* Includes magnetic starter (NEMA 12) and controls without power cord.
Specifications:
SKU | Wheel dia. Width | Wheel RPM Fixed | Wheel RPM Variable | HZ | HP | Volt/Phase | Ship Weight |
14003 | 10" x 2", Double Spindle 3/4 inch arbor | 2000 | - | 60 | 3 | 440/3* | 115 lbs. |
14120 | 10" x 2", Double Spindle 3/4 inch arbor | - | 250-2500 | 50-60 | 1.5 | 120/1 | 87 lbs. |
14200 | 10" x 2", Double Spindle 3/4 inch arbor | 2200 | - | 60 | 1.5 | 120/1 | 80 lbs. |
14300 | 10" x 2", Double Spindle 3/4 inch arbor | 2200 | - | 60 | 1.5 | 220/1 | 80 lbs. |
14420 | 10" x 2", Double Spindle 3/4 inch arbor | - | 250-2500 | 50-60 | 1.5 | 220/1 | 87 lbs. |
14503 | 10" x 2", Double Spindle 3/4 inch arbor | 2000 | - | 60 | 2 | 220/3* | 102 lbs. |
14603 | 10" x 2", Double Spindle 3/4 inch arbor | 2000 | - | 60 | 2 | 440/3* | 102 lbs. |
14700 | 10" x 2", Double Spindle 3/4 inch arbor | - | 250-2500 | 50-60 | 2 | 220/3 | 105 lbs. |
14800 | 10" x 2", Double Spindle 3/4 inch arbor | - | 250-2500 | 50-60 | 2 | 440/3 | 105 lbs. |
14903 | 10" x 2", Double Spindle 3/4 inch arbor | 2000 | - | 60 | 3 | 220/3* | 115 lbs. |
