DeFelsko PosiTector BHI Barcol Hardness Impressor, Standard Gage Body & Probe - BHI1-E

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic.

Features:

• Easy-to-read digital display
• Comparable to 934-1 Barcol Hardness Tester
• Lightweight, portable device can be used in any orientation
• User-adjustable measurement time with onscreen countdown
• PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
• Field replaceable indentor with replacement tool (included)
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Includes PosiSoft suite of software for viewing and reporting data
• Hard-shell carrying case

Simple:

• Easy-to-read digital display
• Comparable to 934-1 Barcol Hardness Tester
• User-adjustable measurement time with onscreen countdown
• Includes spare, field replaceable indentor with replacement tool
• Lightweight, portable device can be used in any orientation
• RESET feature instantly restores factory settings

Accurate:

• Long Form Certificate of Calibration included
• Hi-RES mode increases displayed resolution for use on applications that require greater precision
• Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
• Conforms to national and international standards including ASTM

Powerful:

• Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring

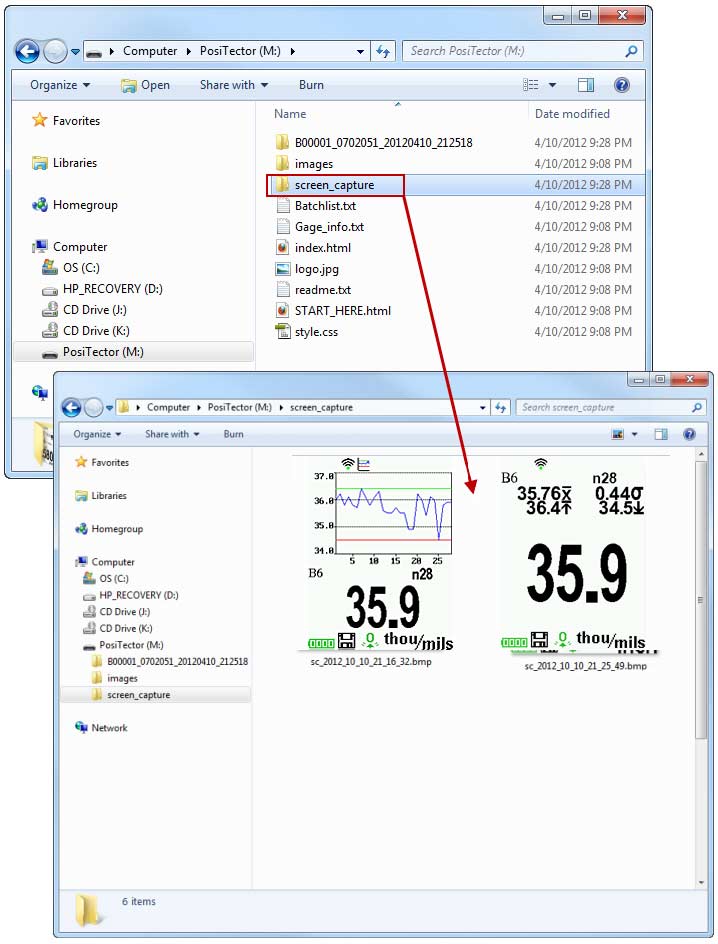

• Screen Capture - save screen images for record keeping and review
  - PosiTector users can capture and save an image copy of the current gage display by simultaneously pressing both the (-) and (+) buttons. The last 10 screen captures are stored in memory and can be accessed within the PosiSoft USB Drive.
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Software Updates via web keep your gage current
• Software Solutions for viewing, analyzing and reporting data
• Every stored measurement is date and time stamped

Durable:

• Solvent, acid, oil, water and dust resistant - weatherproof
• Shock-absorbing, protective rubber holster with belt clip
• Hard-shell carrying case included
• Two year warranty on gage body AND probe

Versatile:

• PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, DPM, IRT, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
• 1 and 2 point calibration options with Cal Reset to restore factory settings
• Selectable display languages
• High contrast LCD with backlit display
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

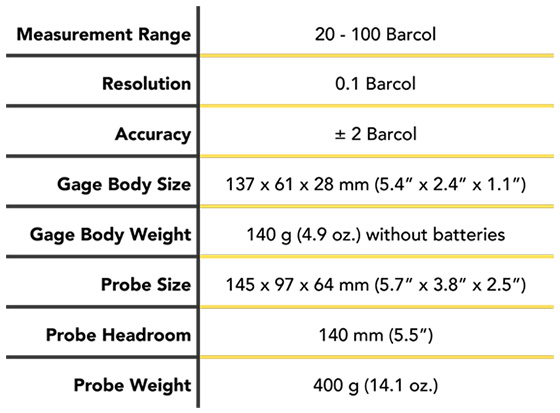

Specifications:

Click to View Instruction Manual

All gages come complete with: test disks (2), glass plate, protective rubber holster with belt clip, wrist strap, 3 AAA batteries, instructions, hard shell carrying case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.

Standard Gage Body Models:

Includes ALL features as shown above plus...

• Storage of 250 readings per probe - stored readings can be viewed or downloaded

See all versions of the DeFelsko PosiTector BHI Barcol Hardness Impressor
