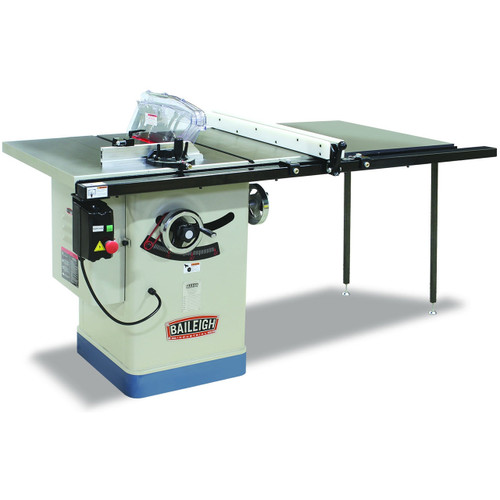

Baileigh TS-1040E-50-V3 Entry Level Cabinet Style Table Saw - BA9-1229613

If you are looking for a great entry level cabinet maker table saw, take a look at the TS-1040E series from Baileigh Industrial. This saw has many features only found on more expensive saws. Available with 30" and 50" right side rip capacities, this 10" table saw will be at home in any shop. The TS-1040E has a 2 HP motor 220 volt single phase power and turns at 3850 RPM.

The table and extensions for the TS-1040E are made from precision ground cast iron. The TS-1040E-30 has a 30" extension board and the TS-1040E-50 has a 50" extension board. Extension boards are great for those materials that are really big and tough to handle. Other standard features to the TS-1040E series are; miter gauge, standardand dado inserts, deluxe rip fence and 4" dust collection port.

Cut with accuracy for an economical price with this entry level cabinet saw. The cast iron table and the steel base, fastened to the trunnion, keep vibrations down to a minimum.

• 50" right-side rip capacity.
• Entry level cabinet saw also available in a 30" rip capacity model.
• 2 hpmotor turns the blade at 3850 rpm.
• Runs on 220-volt single-phase power.
• Uses standard 10” blades with 5/8" arbor.
• Comes with both standard and dado inserts.
• 40" x 27" table and extensions made from precision-ground cast iron.
• Table is webbed into the base with a crisscross pattern that prevents warping or shrinkage. The cast iron surface will remain true.
• Extension boards help you cut materials that are big and tough to handle.
• Heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade.
• You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs).
• Designed with the trunnion attached to the the base, so the machine won’t wobble or exceed a safe decibel noise range.
• Attached trunnion also dampens noise to a safe decibel range.
• Robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table.
• 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle.
• Miter gauge located on base.
• 4" dust collection port lets you hook up an extraction system.
• Slanted surface inside cabinet directs sawdust towards the port to eliminate build-up.
• CSA approved.
• Safety guard on the blade has reverse teeth to prevent kickback.
• Riving knife spreads the wood as you’re cutting to avoid twisting or pinching.
• Entry level cabinet saw protected by a 1-year parts warranty.
• You can depend on lifetime technical support by phone. Whenever you need help or have questions, you can call up Baileigh's team of reps with hands-on machine experience.

Recommended for: Small woodworking businesses that need a high-quality saw to use for a few hours a day.

Specifications:
