Baileigh Rotary Positioning Tables

What is the perfect complement to any computer controlled Baileigh Tube and Pipe Bender? A rotary indexing table, of course.

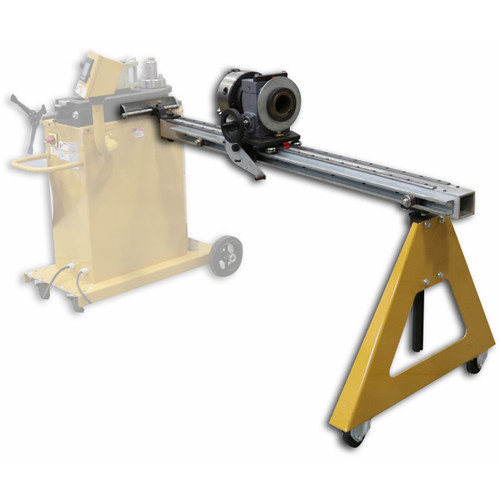

A Baileigh Industrial tube bender fitted with a rotary positioning table allows for accurate bends in varying planes, as well as consistent measurements between bends. Available for the RDB-250, 325, and 350-TS, the tables are available in lengths of 5, 10, 15, and 20', there is a table perfect for any size shop. Only have some jobs that would require the rotary indexing table, it can be attached or taken off of the bender with ease.

The table comes with an 8" three jaw chuck with 2-1/2" thru hole that allows for longer pieces of tubing than the table length. Chuck can handle up to 4-1/2" OD. The minimum OD is 1/4". The table has a linear indicator strip so the operator can set up accurate distances between bends. Mechanical stops can be positioned for the start of each bend. Using the mechanical stops is very beneficial for repeatability on bigger production runs. Another nice feature of the table is that the positioning carriage rolls on a precision V block rail and rides the rail using V-block bearings. These bearings are placed on eccentric shafts, which allows for tolerance adjustment allowing the most accurate results.
