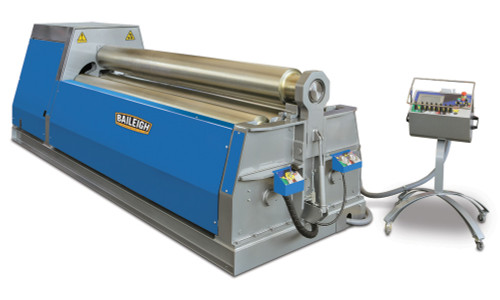

Baileigh PR-10500-4CNC Plate Bending Machine - BA9-1008520

This plate roller has the same rigid steel structure as its sister models (PR-10500-4 and PR-10500-4NC) but incorporates a CNC touchscreen controller specially designed for Baileigh.

• Made in Italy and refined through years of research.
• 1/2" mild steel capacity.
• 120" (10-foot) length.
• Large 10 hp motor runs on 480-volt 3-phase power.

FORMING ROLLS AND HYDRAULICS

• All 4 forming rolls are hardened and polished.
• 2 central driven rolls.
• Dual hydraulic motors and high-efficiency planetary gearboxes directly rotate the 2 driven rolls.
• 4-roll design pinches the plate between the 2 driven rolls, pre-bends the leading edge, and rolls the part along with the trailing edge in one pass.
• Front rolls have independent hydraulic lifters that go in the orbital pattern.
• Stabilizer torsion bar system keeps front rolls parallel to the top roll.
• Plate is pinched at all times during the rolling cycle, so there’s no chance to lose the position.
• You can adjust the angle of the rolls and bend cones.
• Hydraulic system for material removal: yoke on top roll drops, allowing the roll to lift.

CNC PROGRAMMER AND CONTROL PANEL

• Simply draw or load your desired shape, choose the type of material, and the computer automatically generates the program to bend your desired shape.
• 15" touchscreen display (TFT new generation LCD LED) conforms to Rohs regulations.
• CAD system allows you to draw shapes to be bent with the NC.
• You can also load shapes in DXF format from USB pen-drive.
• Configure your desktop or laptops with CAD to create shapes, then export them to the CNC.
• Front panel with more input/output ports: 2 USB, 1 Serial, 1 Ethernet, 2 PS2.
• Amount of steps per program is virtually unlimited.
• Pre-existing system of manual programming “auto-teaching” ensures total flexibility of control.
• Linux RTI operating system.
• New generation motherboard conforms to Rohs regulations.
• Integrated graphical card with accelerated 3D hardware.
• Intel Low power 2.0 GHz Dual Core CPU with lower operating temperature (optimal for industrial environments).
• SO-DIMM DDR Memory 1 GB Industrial range.
• Direct connection of the LVDS display leaves VGA port open for connecting an external monitor.
• Tripled calculation capacity, compared to previous versions.

WARRANTY AND AFTER-CARE

• Covered by a 1-year parts warranty.
• Comes with lifetime technical support by phone from Baileigh's team of knowledgeable reps.

Also available in a non-NC version, the PR-10500-4, and a numerically controlled version PR-10500-4NC.

Specifications:
