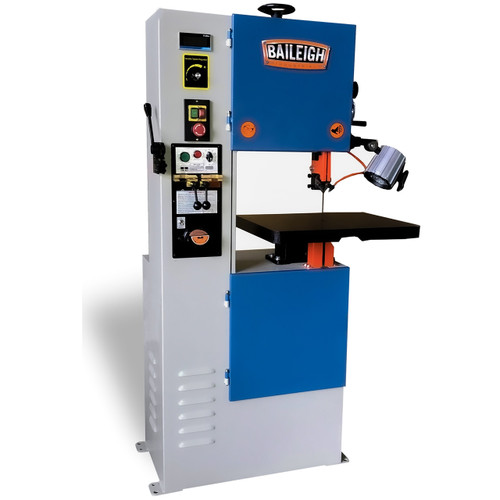

Baileigh BSV-12VS-V2 Variable Speed Vertical Bandsaw, 12.2" Throat Depth - BA9-1230387

Brand:

(No reviews yet) Write a Review
SKU:
BA9-1230387

Baileigh

Baileigh BSV-12VS-V2 Variable Speed Vertical Bandsaw, 12.2" Throat Depth - BA9-1230387

Within our lineup of vertical bandsaws, the BSV-12VS-V2 metal cutting band saw increases capacity and adds an inverter to control the blade speed. Make straight and curved cuts with the vertical blade.

  • 1 hp motor runs on 120-volt power.
  • Wide 12.2" throat depth.
  • 6.69" maximum cutting thickness.
  • Accepts standard 1/8" to 1/2" blades.
  • Cast iron table can pivot front to back and left to right.
  • Variable speed from 100 to 1000 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
  • Digital read out lets you see the estimated blade speed, so you can choose the right settings for your material and extend blade life.
  • This industrial-grade band saw includes everything you need to cut out the center of the material without having to fix a cut through it.
  • Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.
  • Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
  • Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.
  • Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
  • LED work light lets you see what you’re cutting more clearly.
  • Covered by a 1-year parts warranty.
  • Includes lifetime technical support by phone. You can call Baileigh's team of experienced reps whenever you need help with this vertical metal-cutting band saw.

Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.

Specifications:

Part Number BSV-12VS-V2
Stock Number BA9-1230387
Speed Control Inverter
Table Size 15.94" x 19.68"
Butt-Welder Capacity (Blade Width) .125" – .5"
Slant of Table 45°R & 15°L
Motor 1 hp
Maximum Thickness 6.69"
Included Accesories Included Accesories
Throat Depth 12.2"
Working Height 34.84"
Blade Length 98.81" – 102.75" (2510–2610mm)
Blade Speed 100 - 1000 fpm
Blade Thickness .52" (0.64mm)
Power 120 volt
Shipping Weight 668 lbs
Included Blade Size 0.23" (6mm) 14T
Shipping Dimensions 60" x 45" x 81"
