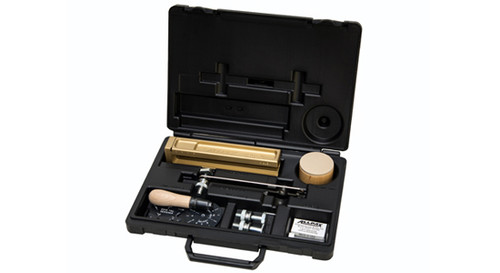

Allpax Heavy-Duty Metric Gasket Cutter Kits
Features:
Extension-style kits feature premium, brass cutter block with contoured edges to minimize gasket material buckling and assure precision cuts. Ergonomic design offers secure, comfortable grip. Easy-to-read, engraved, precision scale. Sliding, knurled nut adjusts cutting radius. Chrome-plated, steel extension bars provide for cuts up to 1550mm (61”) in diameter. Hex screws hold cutting blade for cuts up to 19.05mm (¾”) in depth. 457mm x 457mm (18” x 18”) cutting board features plastic non-slip, textured surface that reduces blade friction, minimizes breakage, and self-heals after each use. Includes rugged storage case, dove-tail designer template, bolt hole locator template, and center pin handle.
- Premium, brass cutter block
- Standard-Duty and Heavy-Duty cutting blades
- Chrome plated, steel extension bars
- Rugged storage case
- 457mm x 457mm cutting board
- Made In the USA
| Part Number | Dimensions (mm) | Weight (lbs) |
|---|---|---|
| AX6100* | 12 x 9 x 2.5 | 7.3 |
| AX6110 | 18.5 x 18.5 x 3.5 | 11.3 |
| AX6120 | 18.5 x 18.5 x 3.5 | 11.3 |
| AX6130 | 18.5 x 18.5 x 3.5 | 11.4 |
| AX6140 | 18.5 x 18.5 x 3.5 | 11.4 |
| AX6150 | 18.5 x 18.5 x 3.5 | 11.5 |
Kit Includes:
| Product | AX6100 | AX6110 | AX6120 | AX6130 | AX6140 | AX6150 | Rep. Part |
|---|---|---|---|---|---|---|---|
| Standard Blades | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Heavy-Duty Blades | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Boron Carbide Blades | 0 | 0 | 0 | 0 | 0 | 0 | 6 |
| Short Center Pin | 1 | 1 | 1 | 1 | 1 | 1 | 6 |
| Medium Center Pin | 1 | 1 | 1 | 1 | 1 | 1 | 6 |
| Long Center Pin | 1 | 1 | 1 | 1 | 1 | 1 | 6 |
| Disc Pin | 1 | 1 | 1 | 1 | 1 | 1 | 6 |
| Center Pin Ferrule | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| Post with Offset Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pivot Post | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Extension Bar Pivot Post | 0 | 0 | 1 | 1 | 1 | 1 | 1 |
| Knurled Nut for Pivot Post | 2 | 2 | 3 | 3 | 3 | 3 | 1 |
| Knurled Nut for Extension Bar | 0 | 0 | 0 | 1 | 2 | 3 | 1 |
| Extension Bar 13"-25" | 0 | 0 | 1 | 1 | 1 | 1 | 1 |
| Extension Bar Over 25" | 0 | 0 | 0 | 1 | 2 | 3 | 1 |
| Cutting Knob | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 18" Cutting BoardCenter Pin Ferrules (2) installed | 0 | 1 | 1 | 1 | 1 | 1 | 1 |
| 24" Cutting BoardCenter Pin Ferrules (2) installed | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| 30" Cutting BoardCenter Pin Ferrules (2) installed | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
| Cutter Block Assembly, Metric | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Storage Case | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Center Pin Handle | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Dove Tail Designer Template | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bolt Hole Locator Template | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
