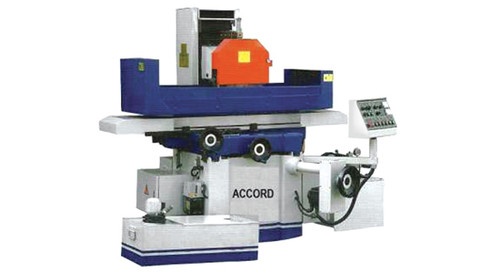

Automatic Surface Grinders 3-AXIS

Features:

• Column is enlarged double walled and ribbed for maximum strength and stability for heavy duty grinding.
• Table, saddle and base are high grade cast iron.
• Enlarged spindle is supported by 4 preloaded class 7 ultra precision angular contact bearings.
• Both vertical and cross are double vee with longitudinal one vee and flat. Slide ways are Turcite "B" coated for friction free table movement.
• Automatic lubrication system insures all slideways and ball screws are lubricated to eliminate wear.
• Cross Feed is equipped with precision ball screws and powered with AC motor.
• Vertical feed powered by AC motor.
• Hydraulic table feeds at 5-25M/MIN or may be hand feed with rack and pinion drive.
• Proximity switch for safe machine operation.
• Pre-set table speed control allows quick and accurate feed repeat-ability when engaging hydraulic table.

Standard Equipments:

• Electro Magnetic Chuck with Controller
• Grinding Wheel w/Wheel Flange
• Wheel Balance Arbor/Overhead Parallel Dresser Unit
• Work Light/Set-up Tool/Hoisting Set
• Leveling Pads/Coolant/Dust System
• Table Splash Guard

Specifications:
