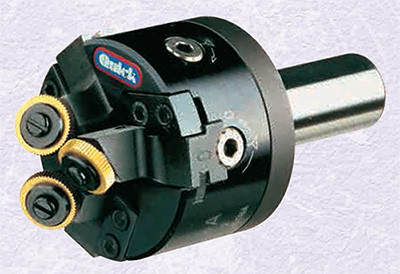

Diamond, Cross & Straight Knurling Tool for Turret Lathes, STR/A, 5/8" Shank - 72-094-6
For Turret Lathes, Turret-Type Automatics and in the Tailstock of Center Lathes
Diamond Knurl Requires 3 Cutters 90°
Straight Knurl Requires 2 Cutters 30° Left and 1 Cutter 30° Right*
Cross Knurling requires 2 cutters 15° right and 1 cutter 15° left (on request).
*Knurling Cutters are not included.
| Model | STR/A | STR/B |
| Capacity | 0.16 - 0.98" | 0.20" - 2.17" |
| Bore of knurling head | 0.78" | 1.38" |
| Depth of bore | 1.00" | 1.46" |
| Knurling head diameter | 2.13" | 3.75" |
| Length of knurling head | 1.46" | 2.05" |
| Length of wheel carrier | 0.59" | 1.18" |
| Weight | 1.76 lbs. | 6.60 lbs. |
Specifications:
| Part Number | Model | Shank H | Through Hole F | Cutter Dia |
| 72-094-6 | STR/A | 5/8" | 0.35" | 9/16" |
See all Diamond, Cross & Straight Knurling Tools for Turret Lathes
Click to see Replacement Parts
Model STR/A --- 5/8" Shank
