JET 17" Drill Press - 716300

Brand:

(No reviews yet) Write a Review
SKU:
716300

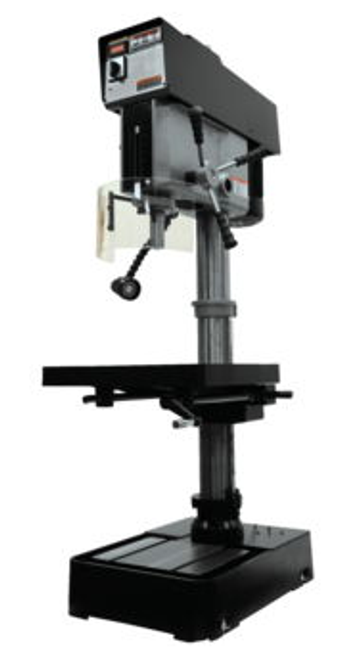

Introducing the new JET JDP-17, 17” Drill Press. From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

FEATURES:

  • Spindle travels a full 5” with one revolution of the handle
  • Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • CSA Certified

SPECIFICATIONS:

 Style (Type) Floorstanding Model
Swing (In.) 16-7/8
Spindle Travel (In.) 5
Number of Spindle Speeds 16
Spindle Speed Range (RPM) 210 - 3500
Spindle Distance to Table (Max.) (In.) 30
Table Size (L x W) (In.) 14 x 19
Table Tilt (Deg.) 90 Left and Right
Chuck Distance to Base (In.) 42-7/8
Chuck Distance to Table (In.) 25-7/8
Chuck Size (In.) 5/8
Column Diameter (In.) 3-5/32
Base Size (In.) 20 x 12-5/8
Motor Power (HP) 3/4
Motor Phase (PH) 1
Motor Amps 9
Recommended Circuit Size (Amps.) 15
Weight (Lbs.) 187
