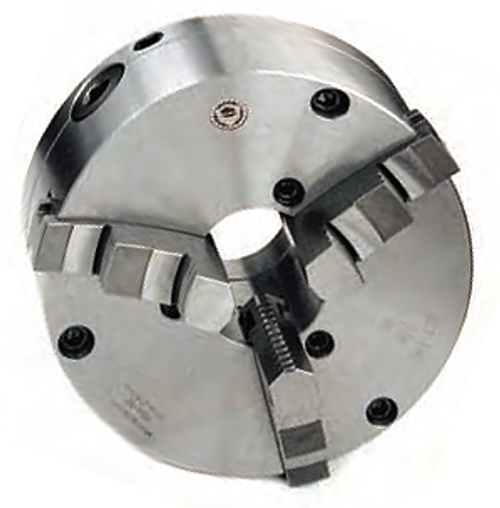

Bison 3-Jaw Set-Tru Scroll Chuck Hard Solid Jaw 6-1/4" Dia. - 7-866-8060

Brand:

(No reviews yet) Write a Review
SKU:
7-866-8060
Chuck Dia.:
6-1/4"
Hole Dia.:
1.654"
RPM Max.:
3500
Weight:
21 lbs.

Bison-BialBison-Bial

Bison 3-Jaw Set-Tru Scroll Chuck Hard Solid Jaw 6-1/4" Dia. - 7-866-8060

  • SET-TRU Scroll Chucks can be used for all machining operations where universal chucks are used, along with applications where universal scroll chucks require tighter tolerances
  • Outstanding accuracy, versatility and long life make SET-TRU chucks invaluable in the modern workshop and indispensable in the toolroom

SET-TRU Chuck Features and Benefits:

  • Fine adjustment
  • Available with forged steel body or semi-steel body
  • 3 pinion design
  • 4 micro adjustment screws provide .0004" T.I.R. repeatability
  • 16", 20" and 25" diameter chucks with 3 jaws and 6 jaws use 8 micro adjustment screws achieving extremely high gripping concentricity
  • Two piece top and master jaws are American Standard tongue and groove
  • 4" diameter chuck has 2 sets of solid jaws
  • Scrolls are forged and fully hardened with thread flanks ground on both sides, then precisely balanced for longer life and higher accuracy
  • Each scroll is precisely balanced
  • Jaw teeth and guides on both sides are fully hardened and ground. Hardened and ground bushings are pressed into the pinion seats. Pinions in 3 pinion models are hardened and ground
  • Each chuck is balanced within fine limits
  • Steel mounting plates are interchangeable with SET-TRU chucks of the same size so that one chuck can be used on different spindles
  • The life of your chuck can be extended significantly through proper maintenance and must be cleaned on a regular basis as recommended

Each chuck is provided with:

  • 1 Set of hard solid ID jaws
  • 1 Set of hard solid OD jaws
  • 1 Chuck wrench
  • 1 Set of mounting bolts
  • 1 Set of fine adjustment screws
  • 1 hex key
