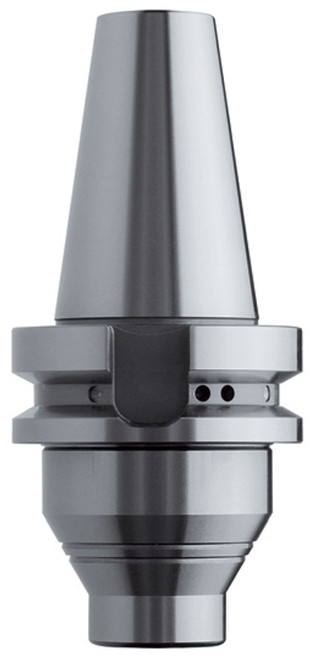

Emuge/Albrecht High Precision FPC Milling/Drilling Chuck, BT40, Size FPC14 - 6493.401415

New Emuge high precision / performance FPC Mill / Drill Chucks provide unprecedented rigidity, vibration dampening, concentricity, machining speed and tool life vs. conventional chuck technologies for milling and drilling applications. Available in a wide range of styles. Internal and peripheral coolant options, and MQL-adaptable.

Increase your machining speed and tool life to the highest possible levels

Emuge FPC Chuck Advantages:

Reliability

• Extremely high transferable torque provides maximum process reliability. Transferred torque on a tool shank diameter of 20mm is 400 Nm.

More accurate

• With a 3 x D tool length, concentricity is ≤ 3 μm, guaranteeing long tool life and quality surface finishes.

Longer tool life

• Special holder design reduces vibration, dramatically improving work piece surface finishes and providing exceptionally long tool life.

Fast tool change

• Simple, highly accurate design enables quick tool change in seconds, via hex wrench.

FPC High Precision Milling/Drilling Chucks Highlights:

• 0.000118" runout at 3XD projection
• Excellent vibration dampening due to collet-holder construction
• Available in CAT, HSK, SK, and BT Shank configurations
• Available in many different gauge length
• Clamping range from 2mm - 32mm, 1/8" to 1- 1 1/4"
• Integrated coolant through with MQL adaptation possible
• Fast tool change due to collet system
• Each holder is balanced with G 2,5 up to 20.000 Rpm
• Maintenance free design

Features:

• ISO taper shank acc. DIN ISO 7388-2 (formerly JIS B 6339 / MAS 403 BT)
• Taper quality AT3
• Concentricity ≤ 3 μm at projection length of 3 x dia.
• Internal coolant supply

Specifications:
