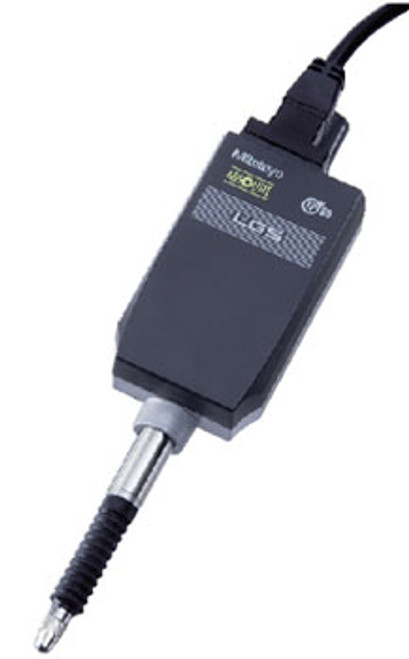

Mitutoyo Linear Gage LGS Series 575



FEATURES:



The LGS is compact Linear Gage designed to fit into tight spaces.



Technical Data

Accuracy: Refer to the list of specifications.

Resolution: 0.01mm or .0005”

Length standard: Capacitance-type ABSOLUTE linear encoder

Max. Response speed: Unlimited

Contact point: Ø 3mm carbide (ø3mm steel: 575-313)

Stem: Ø8mm or 3/8” DIA

Bearing type: Slide-bearing

Measuring force: Refer to the list of specifications

Output signal: Digimatic output

Cable length: 80”/2m

Dust/Water protection level: IP66



Applicable Counters

EC counter(542-007A)

EB counter (542-093-2)

EG counter (542-016)

EV counter (542-064)
