Sylvac/Fowler Probe, 5mm, Straight Cable - 54-618-350

Brand:

(No reviews yet) Write a Review
SKU:
54-618-350
Measuring<br>Range:
5 mm
Measuring<br>Force:
0.6 - 1.2 N
Cable<br>Angle:
Straight
Vacuum:
No
Boot:
Yes
Sylvac Fowler

Sylvac/Fowler Probe, 5mm, Straight Cable - 54-618-350

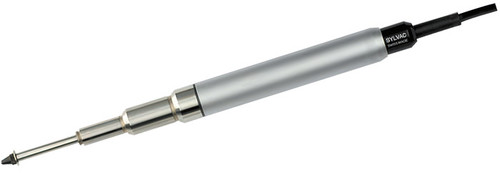

Probes are made of stainless steel, heavily chrome-plated and supplied with 5' cable and standard carbide contact point .078"/2mm ball diameter. The friction bearing design provides smooth measuring for exceptional accuracy. Probes are shock-proof and unaffected by magnetism or humidity.


Accessories include boots, points, lifting levers, foot pedal lifters, stands, stages and extra length cable. Water-resistant probes, special cables up to 75' (20m) for all Sylvac probes, and a variety of measuring forces are available. Contact our Technical Staff for quotations.

  • Coefficient of thermal expansion: 0.01μm/°C
  • Temperature Range: 0-50°C
  • Cable Length: 5'/1.5m
  • Contact Point Thread: M2.5
  • Probes used with any Fowler/Sylvac Display or Multiplexer.


Specifications:

Part Number Measuring
Range
Measuring
Force
Repeatability Max Error Cable
Angle
Vacuum Boot
54-618-350 5 mm 0.6 - 1.2 N .00001" / .2um .00004" / 1um Straight No Yes



See all Sylvac/Fowler Probes

Sylvac/Fowler Probe
