Fowler Ultima Bore Gaging Kit, 0.390-0.790"/10-20mm - 54-565-020-0

Brand:

(No reviews yet) Write a Review
SKU:
54-565-020-0
Range:
0.390 - 0.790" / 10 - 20mm
Accuracy:
-
Measuring Depth:
-

Fowler

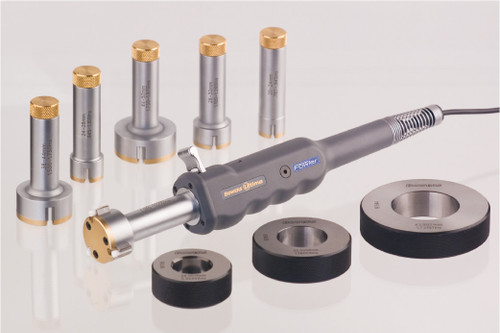

Fowler Ultima Bore Gaging Kit
0.390 - 0.790" / 10 - 20mm


Featuring Bowers' historic quality and high-accuracy the Ultima Bore Gaging System is the next generation of Bower's famous Super-Bore line of bore gages and accessories.


Special Features:

  • Greater accuracy
  • Utilizes Bowers' "FASTFIT" measuring heads
  • Setting rings manufactured to DIN Standard 2250 part 2
  • Extended head ranges (above 14mm) for greater flexibility and cost-effective measurement
  • All 2-6mm sets supplied as standard with depth-stop


Features:

  • Measuring range:.078"-12.3"/2-310mm
  • Resolution: .00001"/.0001mm
  • Constant spring pressure ensures top repeatability
  • Positive feel when heads self-centre in the bore
  • Fastfit measuring heads for rapid replacement
  • UKAS certificates standard for all measuring heads
  • UKAS certificates standard for all setting rings
  • Ceramic anvils on heads above .472"/12mm
  • Blind-bore measurement standard above .472"/12mm
  • Possible to connect several probe holders to one single readout to measure different bore sizes at one measuring station
  • The complete range of Bowers special heads are available for the Ultima (grooves, threads, splines, deep-bores etc.)
  • Depth stops available for all heads
  • Extensions available for deep bore measurement


Kits Include:

  • Handles, Rings & Heads. Does not include readout.



See all listings of the Fowler Ultima Bore Gaging System

Bore Gaging Kit
