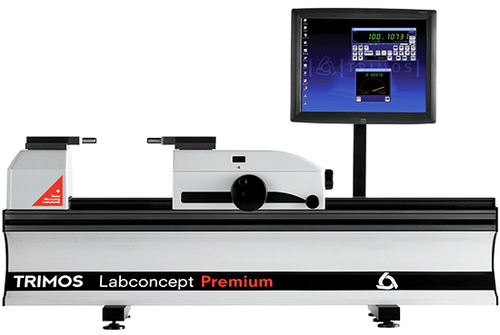

Fowler/Trimos 0-20"/500mm Labconcept Measurement System Premium - 54-197-320
Designed and manufactured in Switzerland the Fowler Labconcept Nano offers an ideal and performing platform for checking and calibration of all kinds of gages and measuring instruments. Checking of internal and external dimensions will be done as a fully automatic procedure by the three motorized axis XYZ and the legendary simplicity of use of the Trimos® WinDHI software.
The Fowler/Trimos LABCONCEPT Premium Universal Length Measurement System combines the ultimate in accuracy, performance, range and simplicity in an easy to use, robust instrument.
It can calibrate all types of standards including plug gages, ring gages, thread plug gages, thread ring gages, snap gages, depth gages, dial indicators and more.
A large variety of accessory supports and probes allow unmatched versatility in checking both internal and external dimensions.
- Measuring range 0—20"(500mm)
- Accuracy: 0.15µm+(L(mm)/2000)µm
- Repeatability (±2S): .000002"/.05µm
- Display: Computer added screen display: PC w/flat screen monitor, DDE server and Trimos WIN DHI software for display of functions and measuring results.
- Developed for ISO 9000/2000 standards
- Switchable Resolution; .0001", .00001", .000001", or .001mm, .0001", .00001mm
- Wide range of easily interchangeable accessories
- Adjustable measuring force 0—12N
- Displacement speed of measuring carriage = 60"/sec(1.5m/sec)
- Fine adjustment range = .394"/10mm
- Operational temperature limit 10˚-40˚C
- Operational humidity limit 30 - 80%
