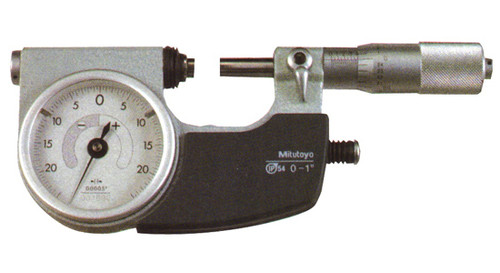

Mitutoyo Indicating Micrometer

• Retractable anvil with indicator for threewire measurements of pitch diameter of precision screws, and parallelism measurements.
• With a standard bar except for 0-25mm /0-1" model
• IP protection level: IP54
• Supplied in fitted plastic case
• Indicating Range: ±.0023"

Technical Data:

• Spindle feed error:  3µm / .00012"
• Dial indication accuracy:  1µm / .00004"
• Dispersion of indication:  0.4µm / .00002"
• Graduation:  0.001mm or .0001"
• Dial reading:  0.001mm or .00005"
• Flatness:  0.3µm/ .000012"
• Parallelism:  0.6µm/ .000024" for models up to 50mm / 2"
     1µm/ .00004" for models over 50mm / 2"
• Measuring force:  5-10N (500 - 1000gf)
• Measuring faces:  Carbide tipped
