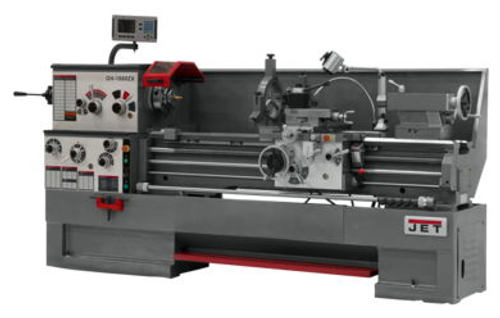

• One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
• Enclosed gearbox design provides smooth, quiet operation
• Fast, easy speed changes
• Low voltage motor controls
• Helical cut headstock gears reduce noise
• Change gears allow metric threading
• Spindle is supported by precision tapered roller bearings
• V-way bed is induction hardened and ground
• Gap bed section provided for large diameter work
• Independent leadscrew and feed rod
• T-slotted compound slide with four-way tool post
• Carriage mounted spindle control lever
• Automatic feeding and threading are fully interlocked
• Feed selectors travel in grooved ways
• Tailstock may be offset for turning tapers and includes and inch/metric graduated quill
• Oil pan included
• Tolerance test certificate included
• 6" 3-jaw direct mount scroll chuck with top reversing jaws
• 8" 4-jaw independent chuck
• 12" faceplate
• Four-way tool post
• Steady and follow rest
• Metric change gear
• Centers and headstock center sleeves
• Threading dial
• Tool box with tools

SPECIFICATIONS:

Size 13 x 40
Digital Readout Newall DP700
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Length of Gap (In.) 8
Distance Between Centers (In.) 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Number of Spindle Speeds 12
Range of Spindle Speeds (RPM) 60 - 1,240
Number of Longitudinal and Cross Feed Rates 38
Range of Longitudinal Feeds (IPR) 0.0018-0.0374
Range of Cross Feeds (IPR) 0.0006-0.013
Number of Inch Threads 38
Range of Inch Threads (TPI) 3-1/2 - 80
