SPI Tapped Hole Location Gages UNF Set - 31-970-7

Brand:

SPI Tapped Hole Location Gages UNF Set - 31-970-7
(No reviews yet) Write a Review
SKU:
31-970-7
A:

B:

Thread:

SPI Tapped Hole Location Gages UNF Set - 31-970-7

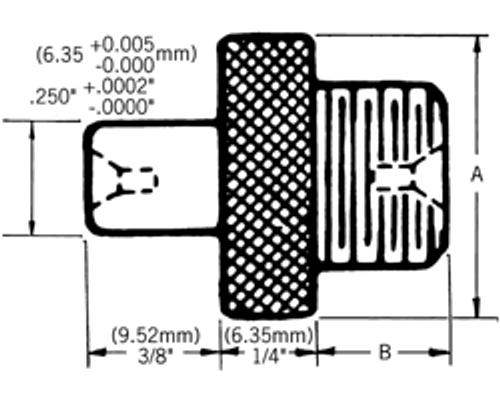

SPI Tapped Hole Location Gages UNF Set


UNF Set of 14 Gages, 2 each of UNF gage sizes in fitted wooden case

  • Hardened and precision ground.
  • Shaft size 1/4" (6.35 mm) dia. x 3/8" (9.52 mm) long — held to same diameter on all gages to simplify calculation of hole spread.
  • Shaft diameter accuracy .250" (6.35 mm) + .0002" (0.005 mm) - .0000" (0. mm).
  • Right hand thread. — Left hand thread on request.
  • Made in U.S.A.
UNF Set of 14 Gages, 2 each of UNF gage sizes in fitted wooden case
