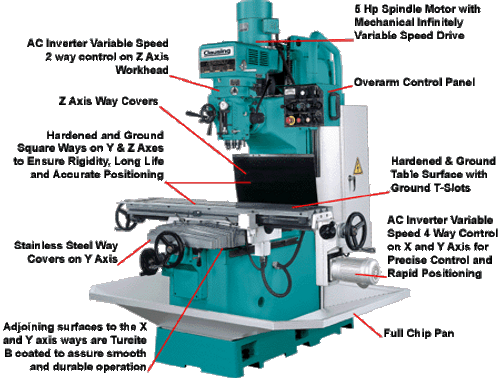

Clausing Knee Mills - Precision Milling Machine

• Meehanite Castings for superior rigidity and wear resistance.
• Hardened & Ground X, Y & Z ways.
• X/Y ways coated with Turcite B
• Columns & Knee way covers.
• T-slots are ground to provide reference edge for positioning your workpiece.
• Hardened & ground table surface.
• Hardened & ground spindle.
• Chromed & ground quill.
• Chromed X, Y & Z leadscrews.
• Double nut leadscrew for backlash compensation.
• ABEC 7/CP4 spindle bearings.
• Coolant system w/pump & switch.
• Flexible segmented coolant nozzle.
• Chromed Y screw covers and one-piece wipers.
• AC Rapid Vertical Drive (4VSQ) 85-4350 RPM
• Variable Speed Drive
• Articulating Head for Compound Angles
• Worm gear angular positioning of head in two directions
• Handwheel for fine quill feed
• Adjustable automatic feed disengagement for quill feed
• Micrometer depth stop or counter clockwise operation
• Reversing switch for clockwise
• ISO 40 Spindle (4VSQ)
• Spindle Brake (Hand operated)
• R-8 or lSO 30 Spindle (2VS & 3VS)
• One-shot lubrication
• Halogen Work Light
• Tool Kit, Test and Accuracy Chart
• Knee Assist on (4VSQ)
