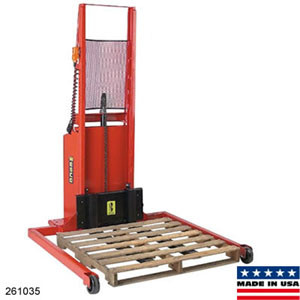

Wesco Adjustable Span Straddle Powered Stacker

Features:

• Extra deep (40") stradle legs amd forks for lifting pallets
• Versatile adjustable span straddle legs can be set from 34" to 50" inside deimesion to handle most standard pallets
• 100v AC models available. To order add AC to the end of the battery powered stacker part #.

Example: Battery Powered #261035, 110V AC Powered #261035AC

Specifications:

ADJUSTABLE STRADDLE FORK MODELS

Part #

261034

261035

261036

Model #

PASFL-56-40S

PASFL-64-40S

PASFL-76-40S

Lift height

56"

64"

76"

Overall height

72"

80"

92"

Weight

510 lbs

518 lbs

554 lbs

Straddle legs I.D.

34" to 50"

34" to 50"

34" to 50"

Capacity

1,000 lbs

1,000 lbs

1,000 lbs

Load Center

20"

20"

20"
