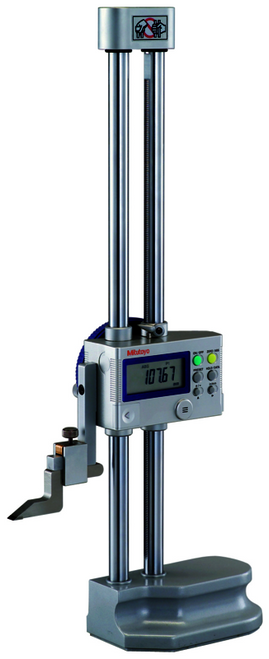

Mitutoyo Digital Height Gauge Double Column
0-12"/0-300mm, Digimatic
This is a high accuracy height gauge, and offers you the following benefits:
- Its double-column structure ensures high measuring accuracy.
- A carbide-tipped scriber is provided.
- Large character height of 11mm provides good readability.
- SPC data output.
Features:
- Switchable resolution (.0002”/0.005mm or.0005”/0.01mm)
- Easy-to-use standard type.
- Carbide-tipped scriber is provided.
- Double-column structure ensures high measuring accuracy.
- Coarse/fine feed switching.
- Two preset reference heights.
Specifications:
| Range | 0 - 12 inch |
| Accuracy | ±0,02 mm/0.001" |
| Mass | 6.5 kg |
| Accuracy | Refer to the list of specifications. (excluding quantizing error) |
| Digital step | 0,01/0,005 mm |
| Max. response speed | 500 mm/s |
| Battery life | approx. 3500 hours |
| Display | LCD, Character Height: 11 mm |
| Delivered | Including scriber, scriber holder, 1 battery and cover |
| ZERO/ABS | Yes |
| PRESET (2 values) | Yes |
| ±SWITCHING | Yes |
| ON/OFF | Yes |
| DATA/HOLD | Yes |
| Low voltage alarm | Yes |
| Data output | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
