Mitutoyo Toolmakers MIcroscopes

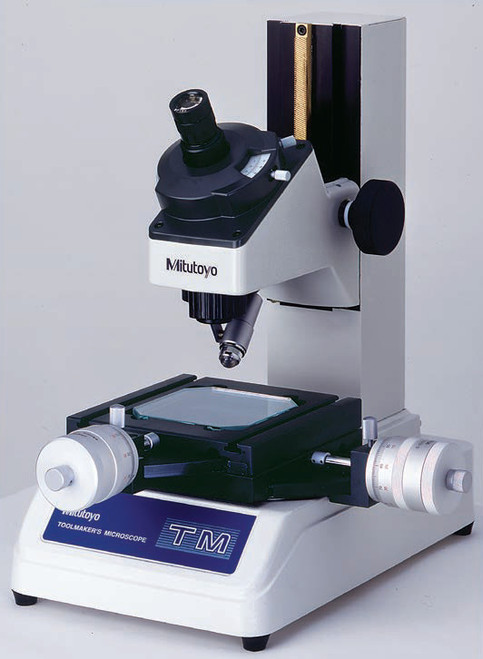

The TM-505D/510D are compact microscopes designed for measuring dimensions and angles. They can also
check the profile of screws and gears by attaching optional reticles.
The TM-505D/510D are supplied with Digimatic Micrometer Heads with output.

Features
• The eyepiece section of the optical tube incorporates a vernier protractor. Angle measurements are easily performed by turning the protractor to align the cross hair reticle with the workpiece image.
• A complete selection of interchangeable reticles.
• Both the transmitted and reflected illumination intensity can be adjusted.
• XY stage with 2”X2” travel (TM-505D) or 4”X2” travel (TM-510D).
• The microscopes are supplied with Digimatic output micrometer heads.
