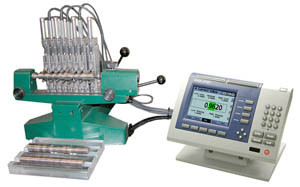

THE FLEXBAR GAGE-CHEK MULTI-AXIS METROLOGY DISPLAY
The Flexbar Gage-Chek is a multi-axis metrology display that accepts up to eight discrete inputs. It features intuitive visual displays, helpful audio cues and user-defined formulas. It also reports dynamic Min/Max measurements, provides SPC analysis from an integrated database and includes connectivity to PCs and other peripherals.
Special Features:
The Flexbar Gage-Chek is a multi-axis metrology display that accepts up to eight discrete inputs. It features intuitive visual displays, helpful audio cues and user-defined formulas. It also reports dynamic Min/Max measurements, provides SPC analysis from an integrated database and includes connectivity to PCs and other peripherals.
Special Features:
- Up to 8 encoder or LVDT Inputs
- Encoder Inputs: Heidenhain, Solartron, Mitutoyo and Nikon
- LVDT Inputs: Solartron, Marposs and Tesa
- Color LCD Display
- Custom formulas and display
- Color coded Pass/Fail with Audio
- Inch/Metric Toggle
- Multiple style Display Configurations
- Color coded Vertical or Horizontal Bar Graph
- DRO Display
- Gas Gage Style
- Selectable High/Low Tolerance Limits
- Display SPC Statistics
- Historic Data
- Single or Multiple Dimensions
- X-Bar and Range charts
- Process Capability Charts
- Data Output: RS-232
- 2 Switching Outputs
- Output single measurement or Entire data Report
- Intuitive Programming Interface
Specifications:
LCD: 6" color Display digit size: .45" Resolution down to: .000004" or .0001mm Operating temperature: 0° C - 45ºC Enclosure (W x H X D): 11.5" x 7.5" x 2.75" Base (W x H x D): 10" x 2" x 7.5" Enclosure weight: 5.4 lbs. Base weight: 6.2 lbs. Input voltage range: 85 VAC - 264 VAC Input Frequency: 43 HZ - 63 HZ
THE FLEXBAR GAGE-CHEK, 8 input
