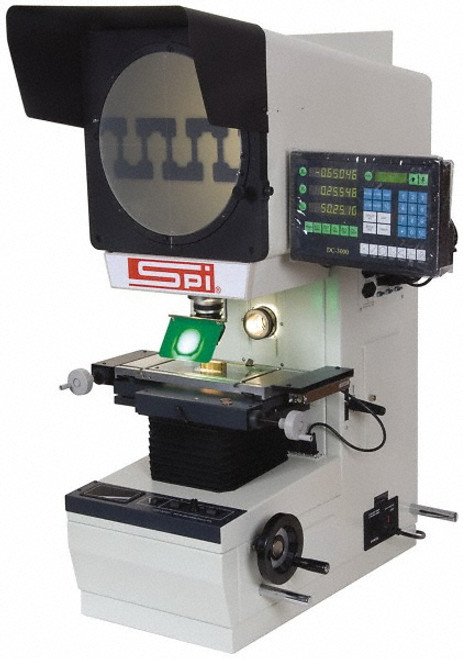

SPI Profile Projector 15-451-6

• Stage Travel (15-451-6) : 7.8" X, 3.9"Y, 3.5"Z

Features:

• Inspect parts with surface and/or profile illumination
• Solid, stable steel construction
• X and Y table positioning through ball screws (0.1" / tev) with quick disconnect for fast positioning
• Excellent quality optical  system provides clear images and accurate magnification
• Error of contour is less than 0.08% of the illumination
• 10X magnification
• Screen Diameter: 12" with a crosshair and a line at 45º and one line 30º/60º for quick angle checking
• Hood reduces glare from overhead lights
• Illumination: 24V / 150W halogen lamp with 3 fans to disperse heat, adjustable for light intensity
• Easy access to mirror for calibration
• Power Source: 110V / 220V (AC), 50/60Hz, 400W total power
• Resolution: (X/Y axis): 0.0004" / 0.001 mm, 0.00002" / 0.0005 mm
• Measuring Accuracy: 4.0 + L/25 µm; L = Measuring length

MSC#50967280
