Sopko Wheel  Balancing Stand 14" - 01899

Balance grinding wheels without leveling or centering by mounting on the four flame-hardened iron discs supported by super-sensitive bearings. In a fraction of the time needed for trial and error methods, you prove balance or detect out-of-balance conditions. Revolving iron discs and their spindles are ground and polished for extreme accuracy. Spindles and bushings are hardened to eliminate the possibility of wear or ball-bearing indentation on spindles or bushings when heavy grinding wheels are being balanced.

Features:

• PORTABLE AND ADJUSTABLE.
• EXTEND GRINDING WHEEL LIFE.
• EASY TO OPERATE.
• LOW INVESTMENT.
• FOR 20" TO 96" DIAMETER WHEELS.
• SUPER-SENSITIVE BEARINGS.
• GROUND AND POLISHED REVOLVING DISCS.
• 1,000 TO 20,000 POUND CAPACITY.

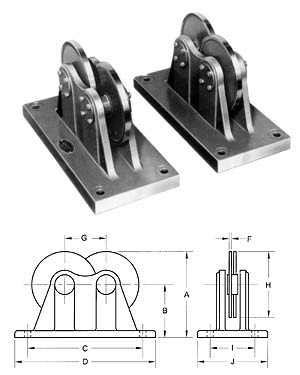

Specifications:
Capacity: 20000 lbs.
A: 14"
B: 9"
C: 21-1/2"
D: 24"
F: 2"
G: 7-1/2"
H: 10"
I: 9-1/2"
J: 12"
